Expression Builder

Overview

The Expression Builder is a visual tool for creating webhook filters without writing code. Filter your webhook notifications to only receive updates that match specific criteria.

Available when creating and maintaining:

• Webhook subscriptions (API documentation)

• Subscription templates

Example: Instead of getting notified about all voyage updates, only get notified for voyages with status "Nominated" or voyages longer than 30 days.

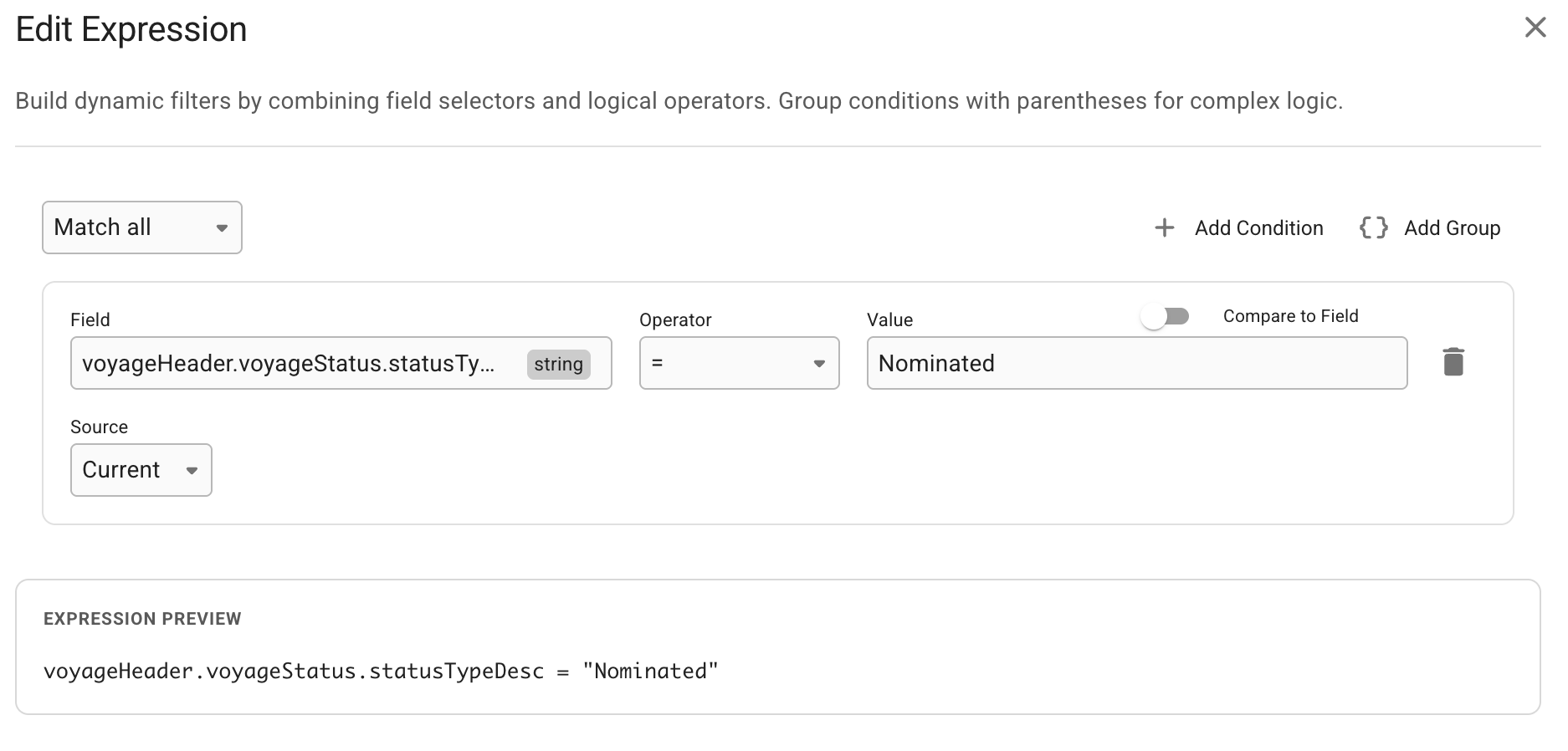

Add Your First Condition

1. Click + Add Condition

2. Click field to open the field selector and select a "Field" (e.g., voyageHeader.voyageStatus.statusTypeDesc).

3. Choose an "Operator" (=, >, <, etc.)

4. Enter the "Value" (e.g., "Nominated")

Add Multiple Conditions

Click + Add Condition again to add more filters:

• By default, conditions use "Match all" (AND logic) – both must be true

• Switch to "Match any" (OR logic) – either condition can be true

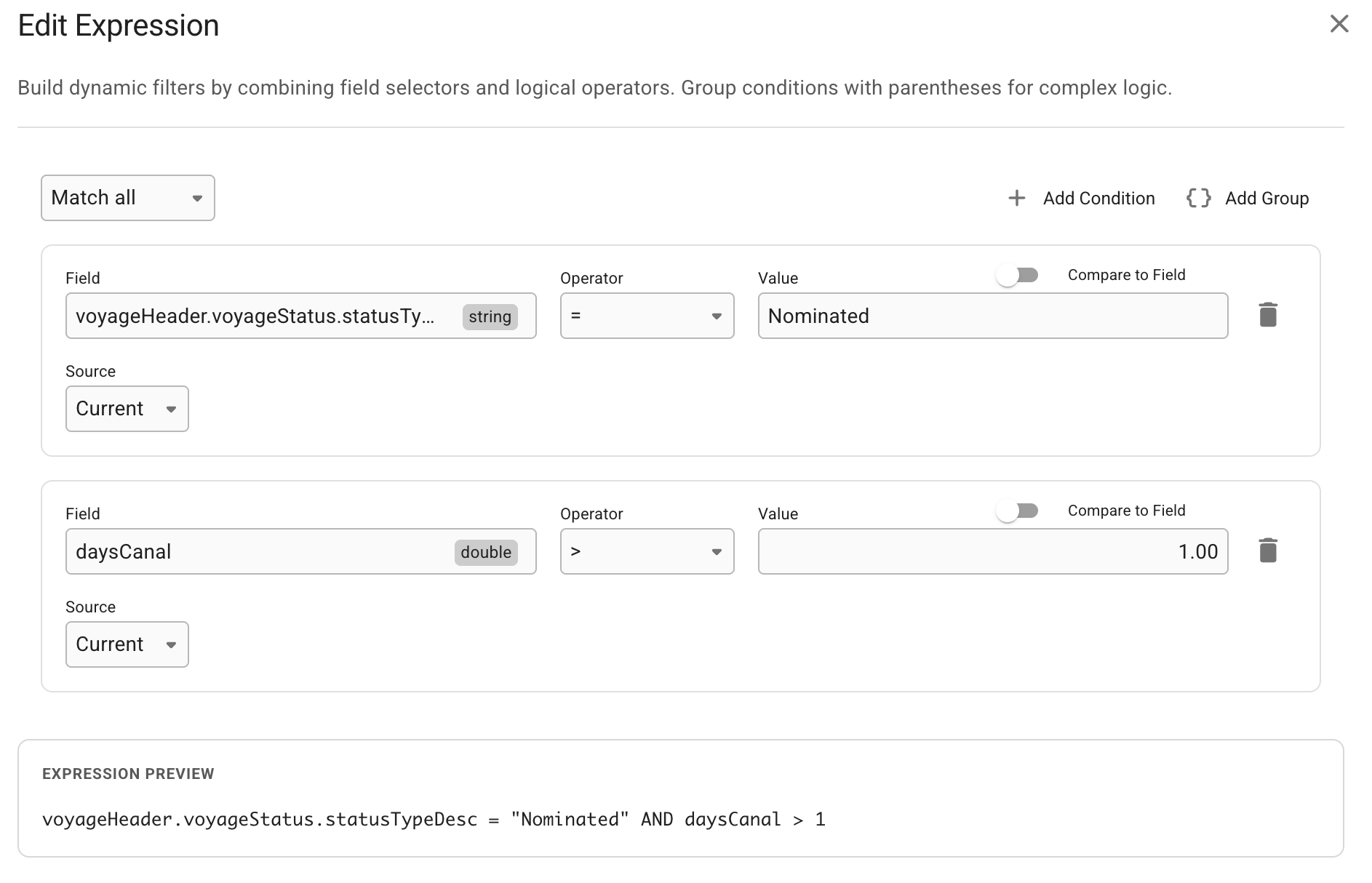

Match all example: statusTypeDesc = "Nominated" AND daysCanal > 1 Match any example: statusTypeDesc = "Nominated" OR daysCanal > 1

Create Groups for Complex Logic

Click + Add Group to create parentheses around conditions:

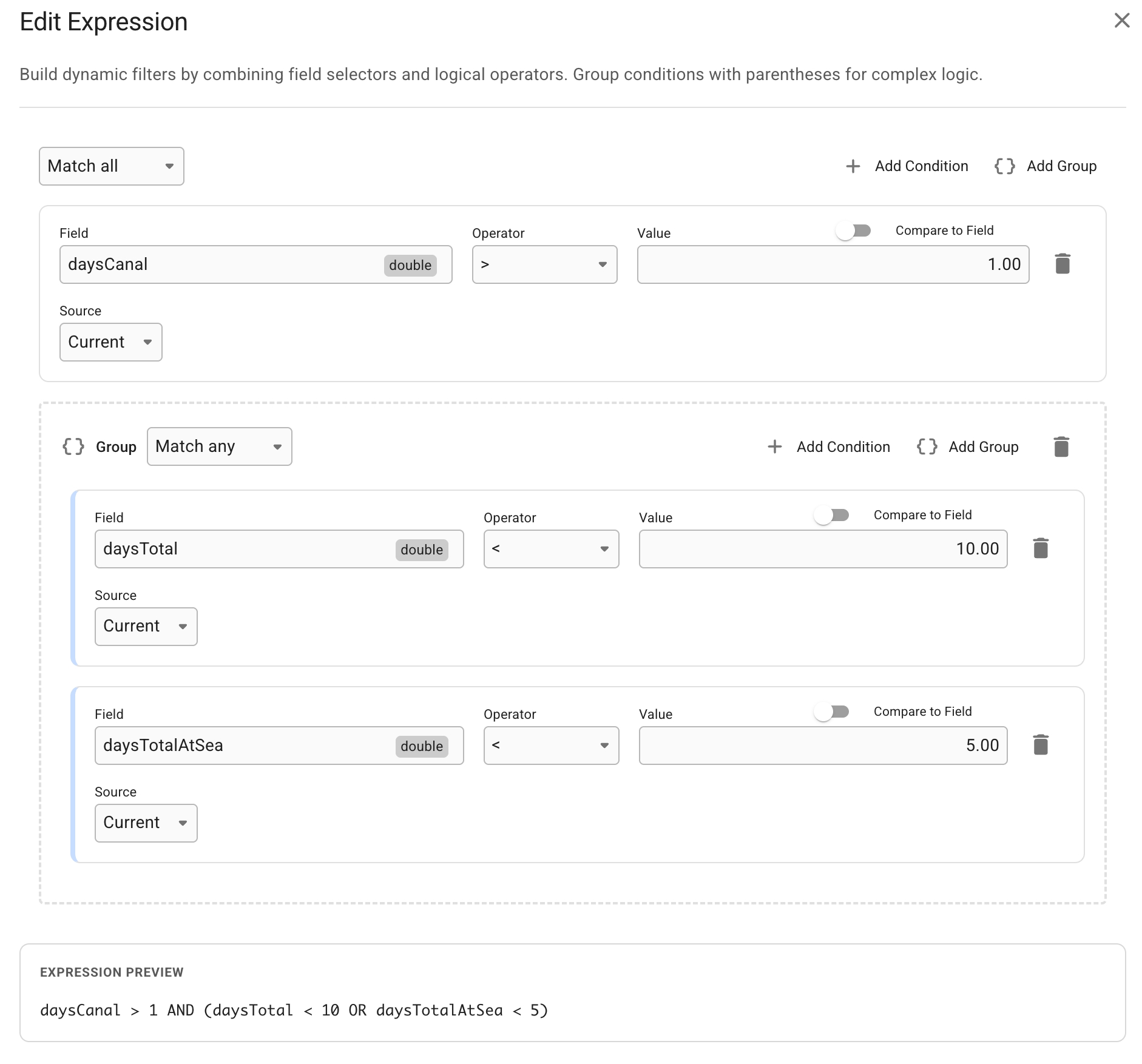

Result: daysCanal > 1 AND (daysTotal < 10 OR daysTotalAtSea < 5)

Compare to Field

Instead of comparing to a static value, you can compare one field to another field by toggling Compare to Field.

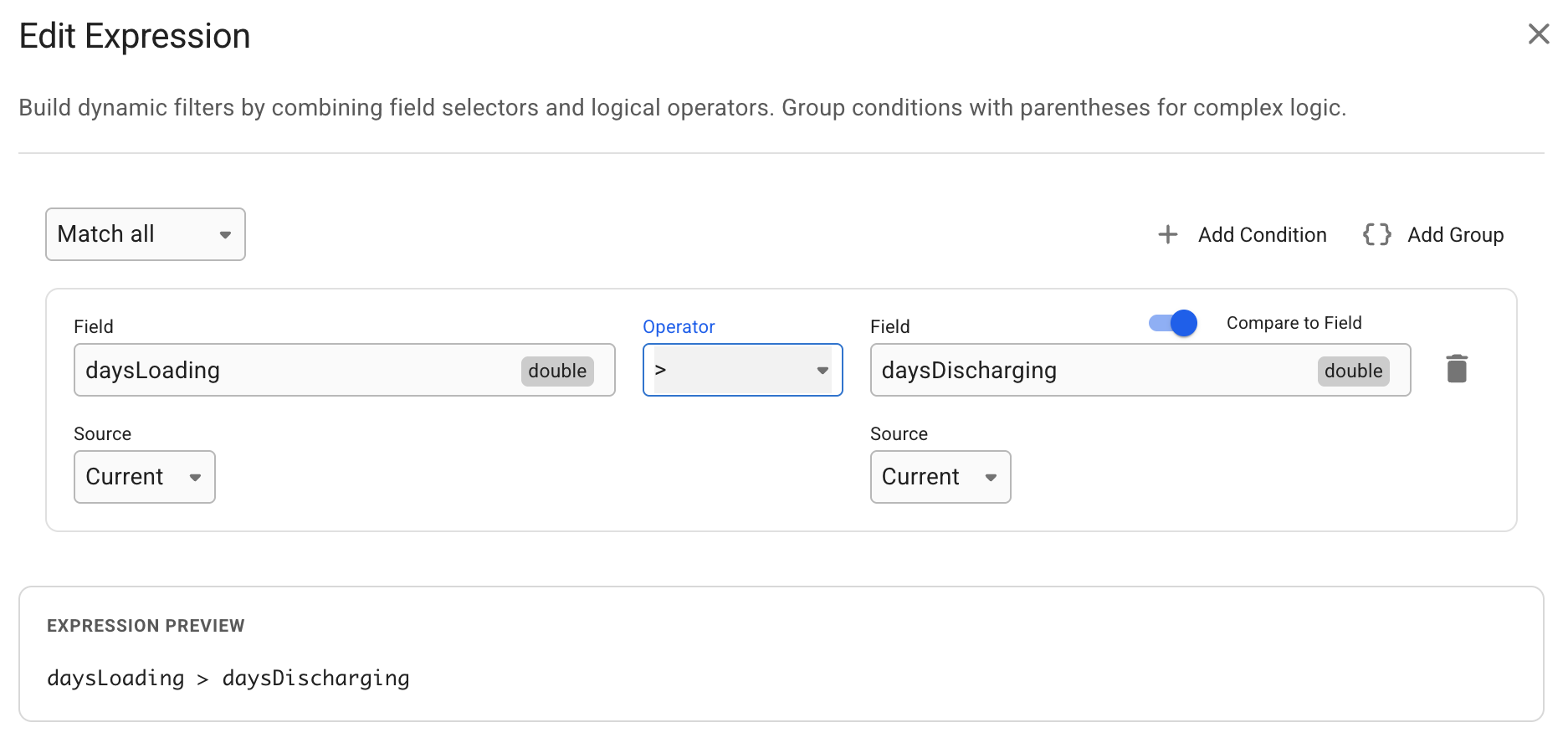

Use case: Get notified when loading takes longer than discharging:

daysLoading > daysDischarging

Previous vs Current Values

When subscribing to updates, you can compare current and previous field values:

• Previous: The field value before the update

• Current: The field value after the update

Example: If voyage daysLoading change from 2.3 to 2.5:

• Previous value = 2.3

• Current value = 2.5

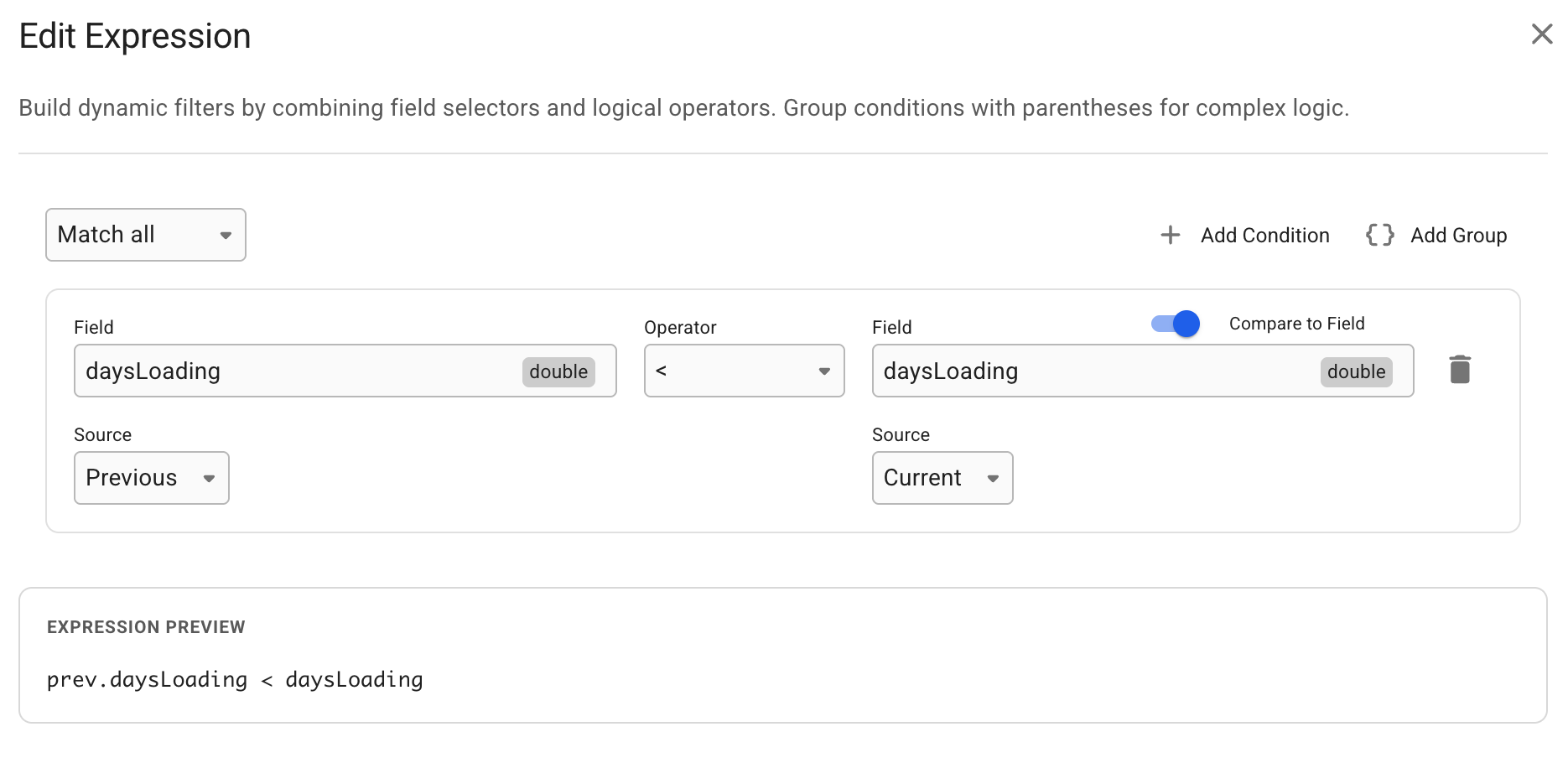

Get notified when loading days increases:

prev.daysLoading < daysLoading
